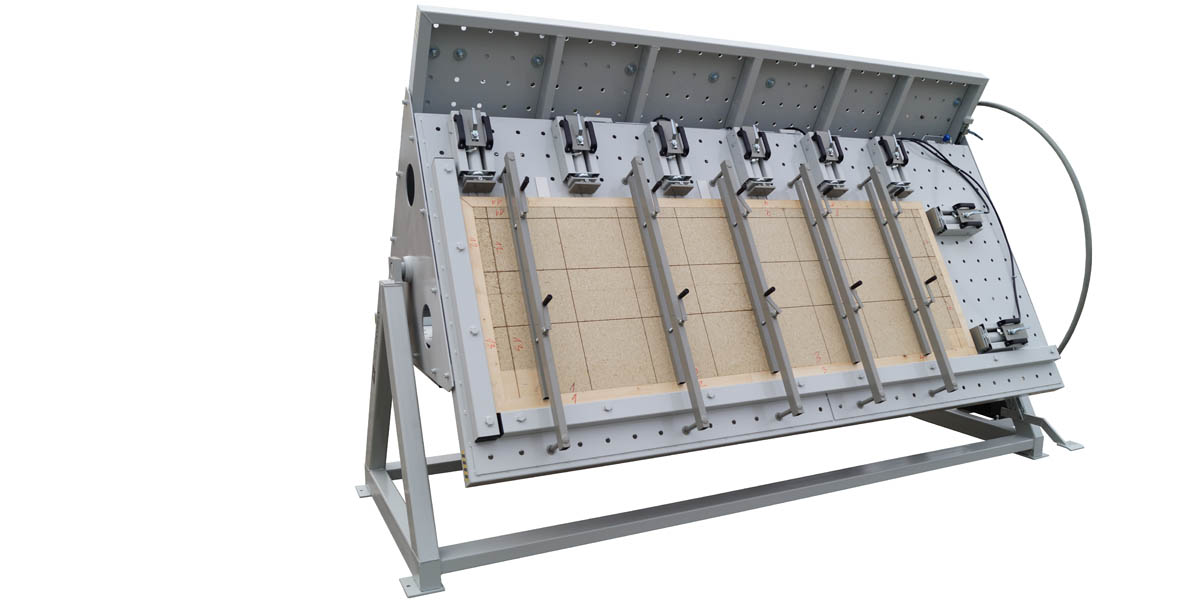

TLSU is turnstille raster press determined for gluing solid wooden boards, frame constructions and other glulam products up to 80 mm material thickness (depth). It is manufactured in gluing lengths 2 000 - 3 500 mm. Machine consists of welden frame with 3 working raster tables which are equipped by pressing units itselves. Pressing units are adjustable in raster table. Machine control is done from control panel where you can also set the working pressure. Rotor turning can be manual by handwheel or automatic by gearbox.
Machine can be equipped by several pressing units and front aligning beams according the customer requirements.
| TLSU product leaflet| parameter | value | unit |
|---|---|---|
| machine length | according the working length | mm |
| machine height | 2 300 | mm |
| machine width | 2 250 | mm |
| machine weight | 850 - 1 200 | kg |
| working tables | 3 | pcs |
| working length (X) | 2 000 - 3 500 | mm |
| working height (Y) | 900 | mm |
| working width/depth (Z) | 80 | mm |
| working positions setting | YES | raster table | mm |
| number of pressing units in 1 table | 4 - 10 | pcs |
| cylinder pressure | 1 200 (20) / 2 000 (20) | kg (kN) |
| cylinder stroke | 120 | mm |
| working pressure | 0 - 8 | kg/cm2 |
| number of front aligning beams | 0 - 8 | pcs |
| hydraulic pump power | 1,5 - 2,2 | kW |
| hydraulic pressure setting | YES | on control panel directly | |
| maximal pressure in hydraulic circuit | 200 | bar |
| hydraulic oil | HM 46 | 12 liters |
| voltage | 3x 400 V / 50 Hz |
A | FIXED PLATE | Pressing unit is able to be set in angle range after 90° and it has got fixed pressing plate.
B | VARIABLE PLATE | Pressing unit is able to be set in angle range after 90° and it has got variable pressing plate (± 45°).
C | MAGNETIC UNIT | Pressing unit is able to be set in angle 0 - 360° fluently and its positon is locked by magnet.
3.1 | PNEUMATIC UNITS | Pressing unit can be also pneumatic version for lower pressure requirements. It has got its own stop ball valve, so it is possible to OPEN/CLOSE it separately.
3.1 | FRONT ALIGNIN BEAMS FOR GLUING DESKS | Each hydraulic cylinder has got its own stop ball valve, so it is possible to OPEN / CLOSE it separately.
3.2 | SINGLE SUPPORTS | Each hydraulic cylinder has got its own stop ball valve, so it is possible to OPEN / CLOSE it separately.
3.3 | WHEELS | Each hydraulic cylinder has got its own stop ball valve, so it is possible to OPEN / CLOSE it separately.
