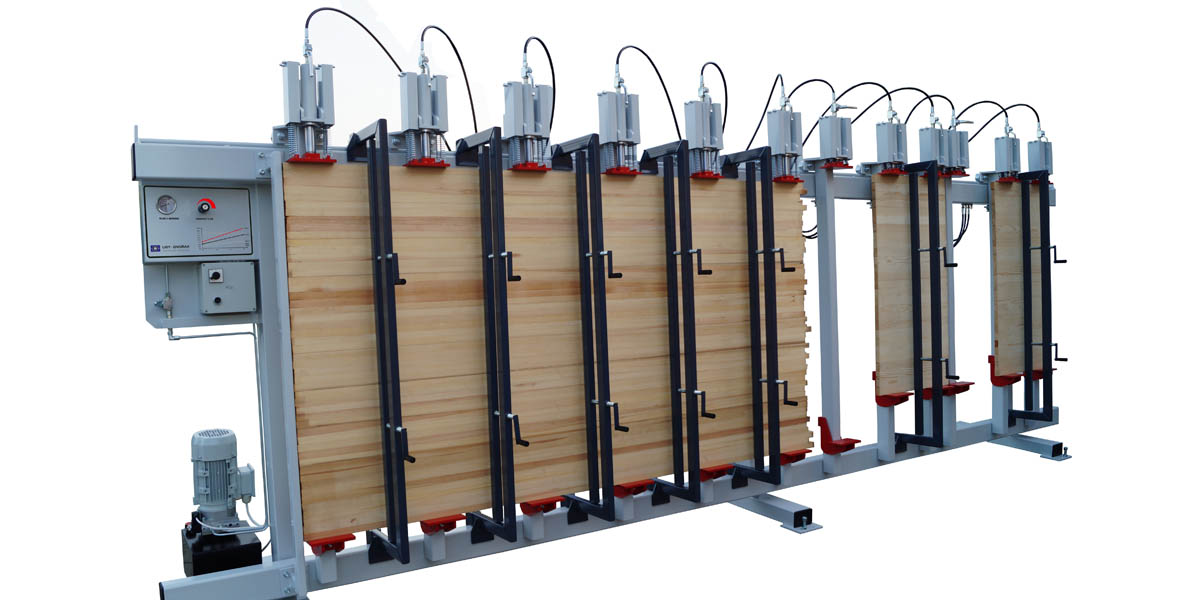

SLS is stand press determined for gluing solid wooden boards and glue laminated timber beams up to 90 mm depth (width). It is manufactured in gluing lengths 2500 - 6000 mm. Machine consists of welden frame on which are travelling pressing units itselves. Working height is adjustable in raster 100 mm. Machine control is done from control panel where you can also set the working pressure
Machine can be equipped by several pressing units and front aligning beams according the customer requirements.
| SLS product leaflet | parameter | value | unit |
|---|---|---|
| machine length | 3 000 - 6 500 | mm |
| machine height | 2 150 | mm |
| machine width | 950 | mm |
| machine weight | 560 - 1 500 | kg |
| working length | 2 500 - 6 000 | mm |
| working height | 1 400 | mm |
| working height setting | YES, raster 100 mm | mm |
| working width (depth) | 90 | mm |
| number of cylinders | 8 - 20 | pcs |
| cylinder pressure | 2 000 (20) | kg (kN) |
| cylinder stroke | 90 | mm |
| working pressure | 0 - 8 | kg/cm2 |
| number of front aligning beams | 0 - 14 | pcs |
| hydraulic pump power | 1,5 - 2,2 | kW |
| hydraulic pressure setting | YES, on control panel directly | |
| maximal pressure in hydraulic circuit | 200 | bar |
| hydraulic oil | HM 46 | 12 liters |
| voltage | 3x 400 V / 50 Hz |

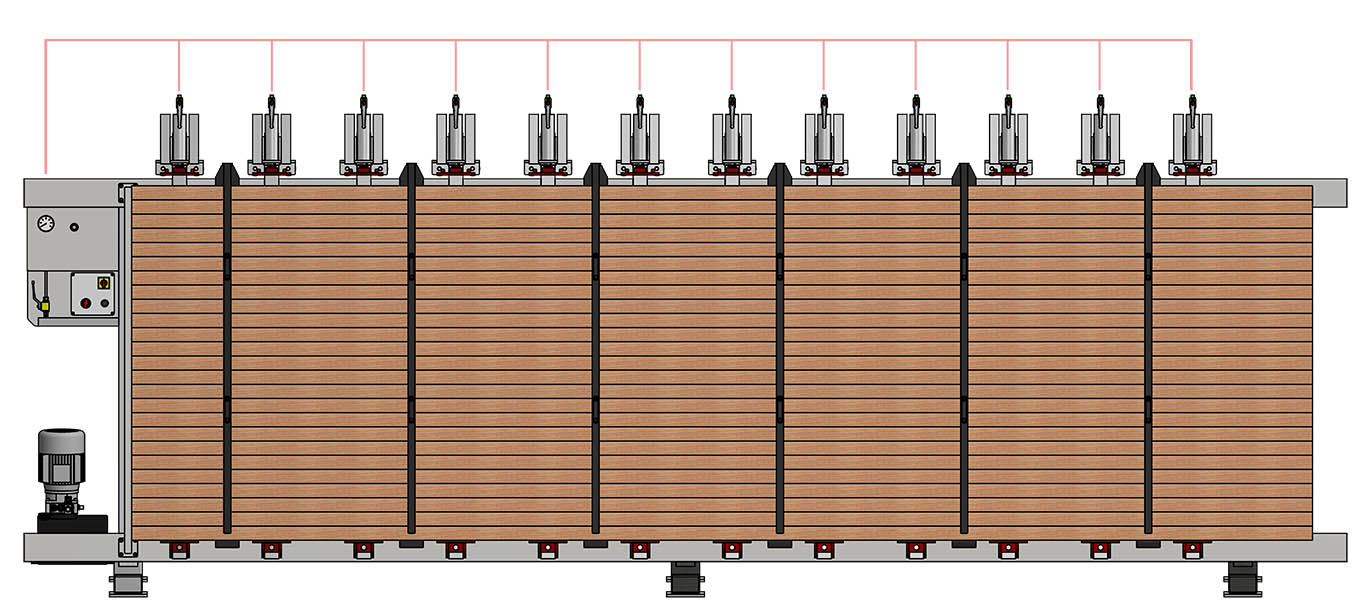

2.1 | 1x CENTRAL + EACH CYLINDER | Each hydraulic cylinder has got its own stop ball valve, so it is possible to OPEN/CLOSE it separately. On the control panel there is CENTRAL stop ball valve for controlling the whole circuit.
2.2 | 2x CENTRAL + EACH CYLINDER = Each hydraulic cylinder has got its own stop ball valve, so it is possible to OPEN/CLOSE it separately. On the control panel there are 2 pcs of CENTRAL stop ball valves = 2 working zones.
