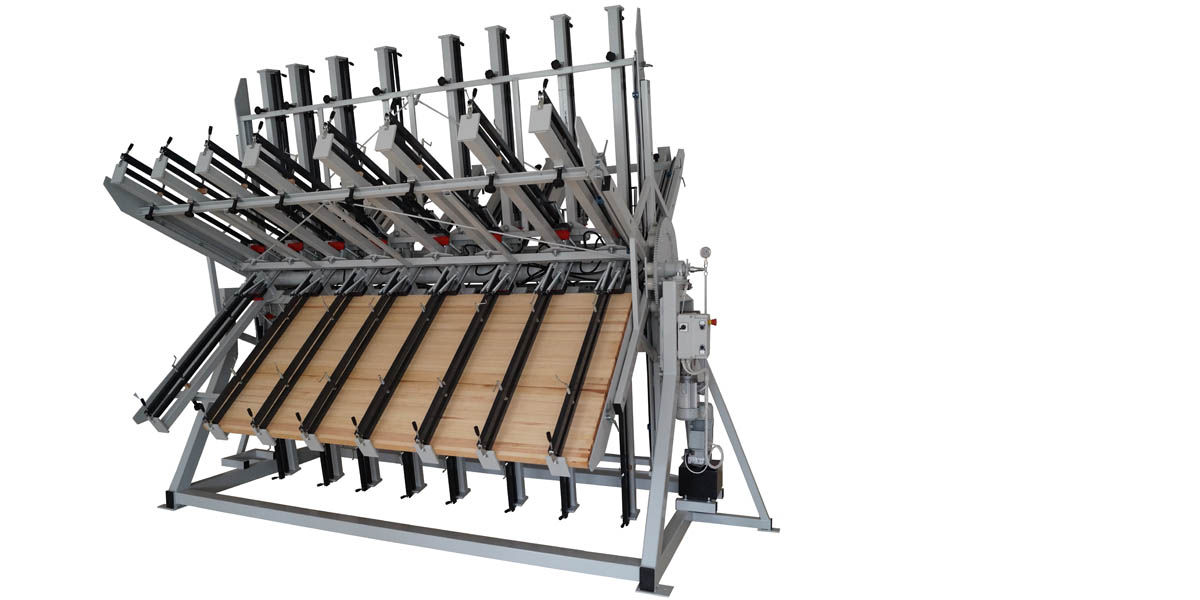

Turnstile press TH6 is determined for edge glueing, especialy for boards and desks. It is welded construction. Star rotor with 6 working tables is mounted in bearings in fixed frame. On each of 6 tables there are installed adjustable pressing units with upper clamping beam. Source of the pressure is electro hydraulic pump. Controling of the cylinders is described below. Rotor turning is manual or automatic by electric gearbox.
| TH6 product leaflet
| TH6 video
| parameter | value | unit |
|---|---|---|
| overall machine length | 3 000 - 4 500 | mm |
| machine height | 3 250 | mm |
| machine width | 3 250 | mm |
| machine weight | 800 - 1 500 | kg |
| number of working tables | 6 | pcs |
| working length | 2 000 - 3 500 | mm |
| working height | 1 050 / 1 250 | mm |
| working height setting | raster 80 mm | mm |
| working thickness (depth) | 50 | mm |
| number of cylinders | 8 - 14 | pcs |
| cylinder pressure | 2 000 (20) | kg (kN) |
| cylinder stroke | 90 | mm |
| working pressure | 0 - 12 | kg/cm2 |
| hydraulic pump power | 1,5 | kW |
| hydraulic pressure setting | YES, on control panel directly | |
| maximal pressure in hydraulic circuit | 200 | bar |
| hydraulic oil | HM 46 | 12 liters |
| voltage | 3x 400 V / 50 Hz | |
| prodcutivity | 12 - 15 | tables/hour |
Hydraulic working table control can be done several ways. In basic working table is divided by 2 central stop ball valves into independent 2 halves. If the press is longer there can be 3 central valves and table can be divided into 3 thirds. Next possibility is 1 central stop ball valve and each cylinder extra has got own stop ball valve to be able open or close it. You can set the working zones direcly according your needs this way. Also you can have 2 central valves and each cylinder own stop ball valve. Everything depends on customer needs and his production type. You can see the schemes of different variants of hydraulic circuits below.
2.1 | STANDARD CONTROL 2+2 | There are 2 pcs of central stop ball valves = 2 working zones.
2.2 | 1x CENTRAL + EACH CYLINDER OWN STOP BALL VALVE | There is 1 central stop ball valve and each hydraulic cylinder has got its own stop ball valve, so it is possible to OPEN/CLOSE it separately and use several working zones.
2.3 | 2x CENTRAL + EACH CYLINDER OWN STOP BALL VALVE | There are 2 central stop ball valves and also each hydraulic cylinder has got its own stop ball valve, so it is possible to OPEN/CLOSE it separately and use several working zones.
3.1 | MANUAL HAND WHEEL ROTOR TURNING | Rotor turning is done by hand wheel and position aretation by locking pedal.
3.2 | AUTOMATIC ROTOR TURNING | Rotor turning is done automaticaly by electric gearbox.
