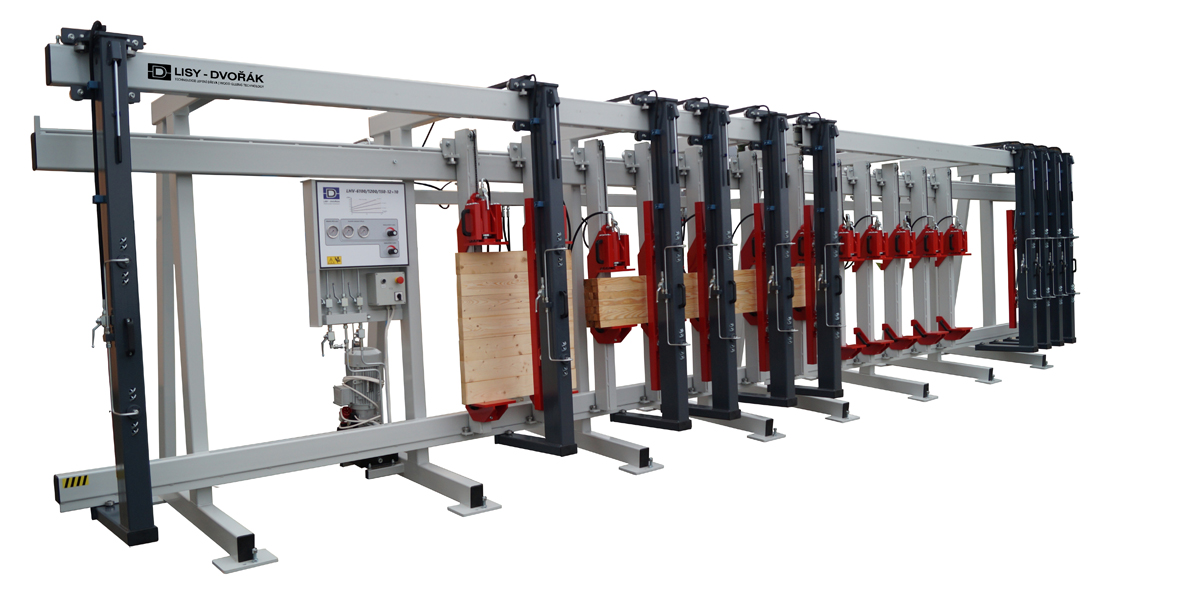

Press LHV is heavy durable welded construction. It is determined for industrial glueing of wood glulam constructial beams (euro type beam, BSH, DUO-lam, TRIO-lam) or glulam solid panels up to width (depth) 125 or 150 mm. Its constrcution is suitable for atypical glueing dimensions, especialy for stairs production. Horizontal cylinders are adjustable in axis X and Y which allows to glue different material heights and lengths. Front aligning beams are mobile. Press is fully hydraulic. Source of the pressure is electrohydraulic pump.
Machine can be equipped by several pressing units and front aligning beams according the customer requirements.
| LHV product leaflet| parameter | value | unit |
|---|---|---|
| machine length | 3 000 - 18 000 | mm |
| machine height | 2 450 | mm |
| machine width | 1 420 | mm |
| machine weight | 800 - 6 000 | kg |
| working length | 2 000 - 12 000 | mm |
| working height | 1 200 | mm |
| working height setting | YES, raster 100 mm | mm |
| working width (depth) | 150 | mm |
| number of cylinders | 8 - 30 | pcs |
| cylinder pressure | 4 000 (40) | kg (kN) |
| cylinder stroke | 90 | mm |
| working pressure | 0 - 8 | kg/cm2 |
| number of front aligning beams | 0 - 14 | pcs |
| hydraulic pump power | 3 - 4 | kW |
| hydraulic pressure setting | YES, on control panel directly | |
| maximal pressure in hydraulic circuit | 200 | bar |
| hydraulic oil | HM 46 | 12 liters |
| voltage | 3x 400 V / 50 Hz |

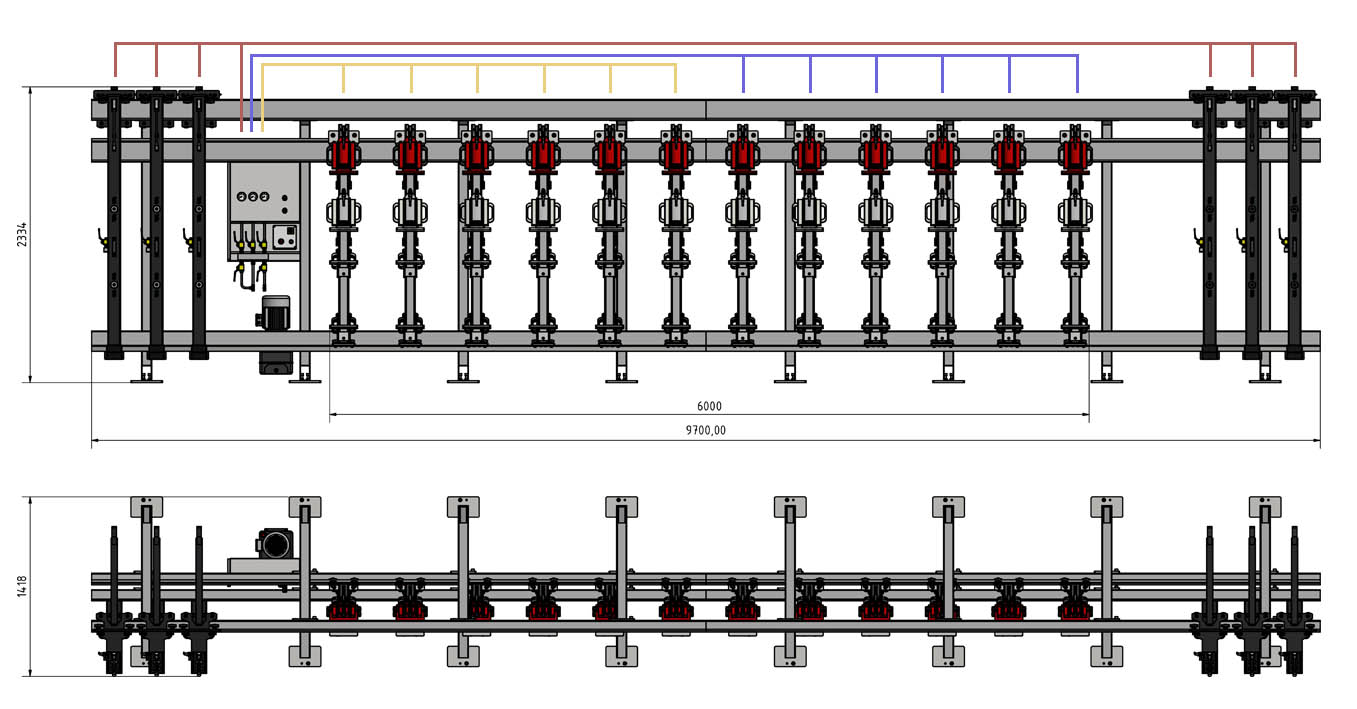

3x CENTRAL + EACH CYLINDER = Each hydraulic cylinder has got its own stop ball valve, so it is possible to OPEN / CLOSE it separately. On the control panel there are 3 CENTRAL stop ball valves for controlling the whole circuit (left half of horizontal cylinders, right half of horizontal cylinders and front aligning beams).
