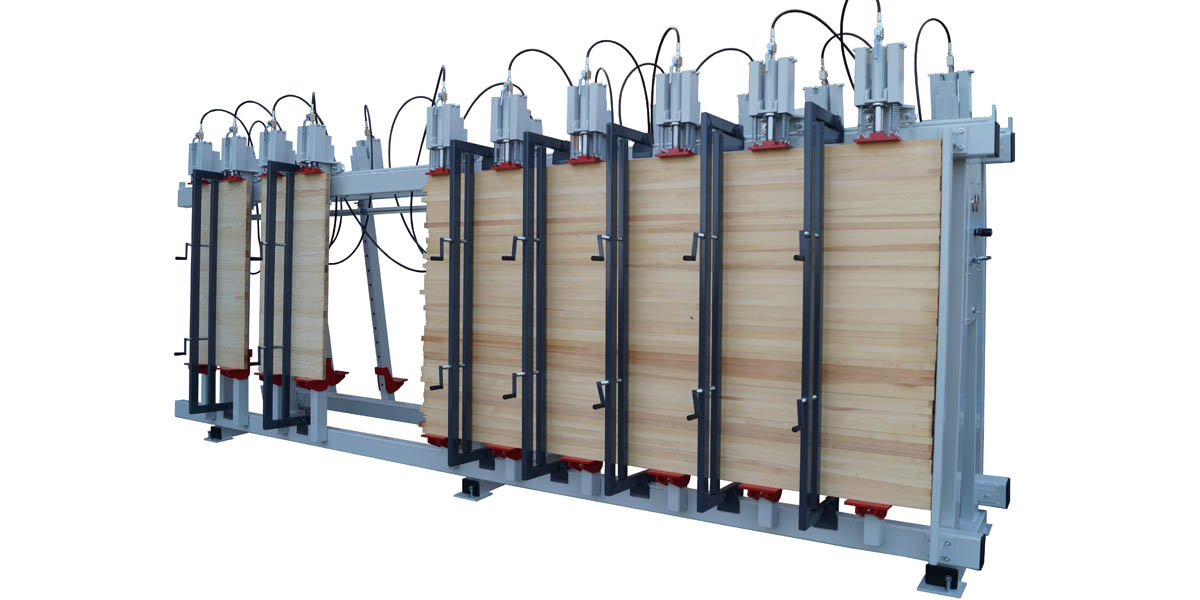

D-SLS is stand press determined for gluing solid wooden boards and glue laminated timber beams up to 90 mm depth (width). Opposite SLS it has got 2 working zones on both sides. It is manufactured for gluing lengths 2 000 - 6 000 mm. Press consists of welded frame made by thick steel profiles on which are travelling pressing units itselves. Working height is adjustable by moving bottom supporting feets in raster 100 mm. Controlling is done on control panel where you can also set the working pressure by pressure regulator.
Press can be equipped by individual number of pressing units and front aligning beams according the customer requirements.
| D-SLS product leaflet| parameter | value | unit |
|---|---|---|
| overall machine length | 3 000 - 6 600 | mm |
| machine height | 2 150 | mm |
| machine width | 950 | mm |
| machine weight | 560 - 1 500 | kg |
| max. working length | 2 000 - 6 000 | mm |
| max. working height | 1 400 | mm |
| working height setting (axis Y) | YES, in raster 100 mm | mm |
| max. working width (depth) | 90 | mm |
| number of cylinders | 8 - 20 | pcs |
| cylinder pressure | 2 000 (20) | kg (kN) |
| cylinder stroke | 90 | mm |
| working pressure | 0 - 8 | kg/cm2 |
| number of front aligning beams | 0 - 14 | pcs |
| hydraulic pump power | 1,5 - 2,2 | kW |
| hydraulic pressure setting | YES, on control panel directly | |
| maximal pressure in hydraulic circuit | 200 | bar |
| hydraulic oil | HM 46 | 12 liters |
| voltage | 3x 400 V / 50 Hz |
2.1 | 1x CENTRAL + EACH CYLINDER = Each hydraulic cylinder has got its own stop ball valve, so it is possible to OPEN / CLOSE it separately. On the control panel there is CENTRAL stop ball valve for controlling the whole circuit.
2.2 | 2x CENTRAL + EACH CYLINDER = Each hydraulic cylinder has got its own stop ball valve, so it is possible to OPEN / CLOSE it separately. On the control panel there are 2 pcs of CENTRAL stop ball valves = 2 working zones.
