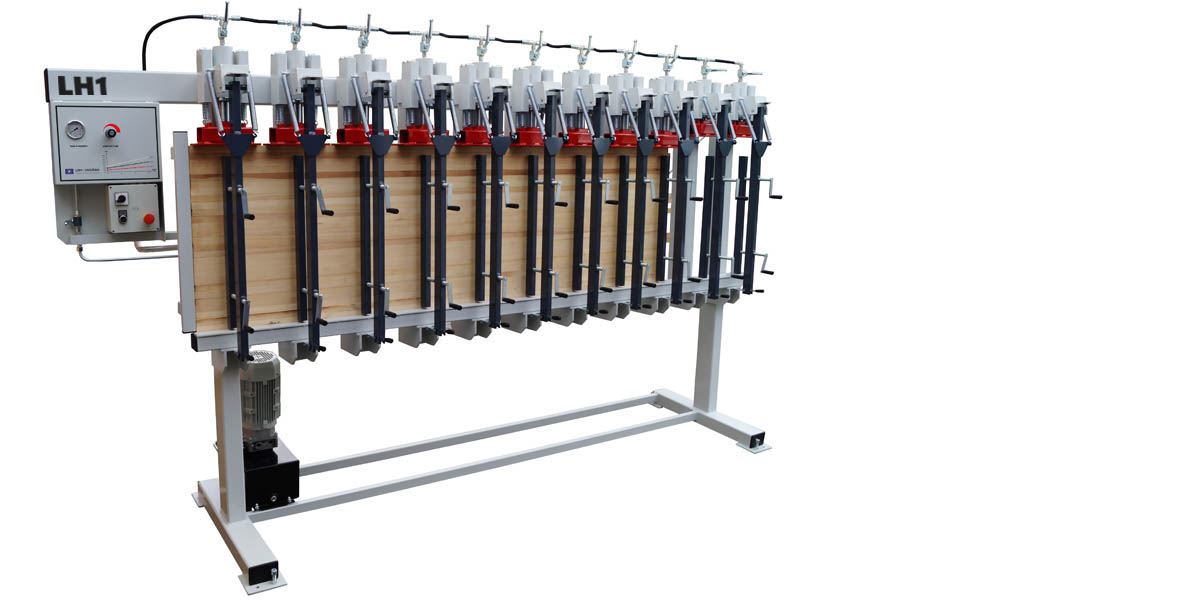

LH1 is smaller press determined for glulam beam gluing (euro type beam, BSH, DUO-lam, TRIO-lam) in lengths 2 000 - 6 000 mm up to maximal material width (depth) 100 mm or 150 mm. Working (gluing) height is 750 or 1 000 mm. Its design is suitable mainly for smaller joinery workshops. Installation dimensions are benefical for instalation close to the wall not to waste free space. Pressing units has got integrated front aligning beams which are tighten manualy by handle screws.
Machine can be equipped by several pressing units according the customer requirements.
| LH1 product leaflet| parameter | value | unit |
|---|---|---|
| overall machine length | 3 000 - 7 000 | mm |
| machine height | 2 150 | mm |
| machine width | 800 | mm |
| machine weight | 560 - 1 500 | kg |
| working length | 2 000 - 6 000 | mm |
| working height | 750 / 1 000 | mm |
| working width (depth) | 100 / 150 | mm |
| number of cylinders | 4 - 20 | pcs |
| cylinder pressure | 4 000 (40) | kg (kN) |
| cylinder stroke | 90 | mm |
| working pressure | 0 - 8 | kg/cm2 |
| number of front aligning beams | 4 - 20 | pcs |
| hydraulic pump power | 1,5 - 3 | kW |
| hydraulic pressure setting | YES, on control panel directly | |
| maximal pressure in hydraulic circuit | 200 | bar |
| hydraulic oil | HM 46 | 12 liters |
| voltage | 3x 400 V / 50 Hz |

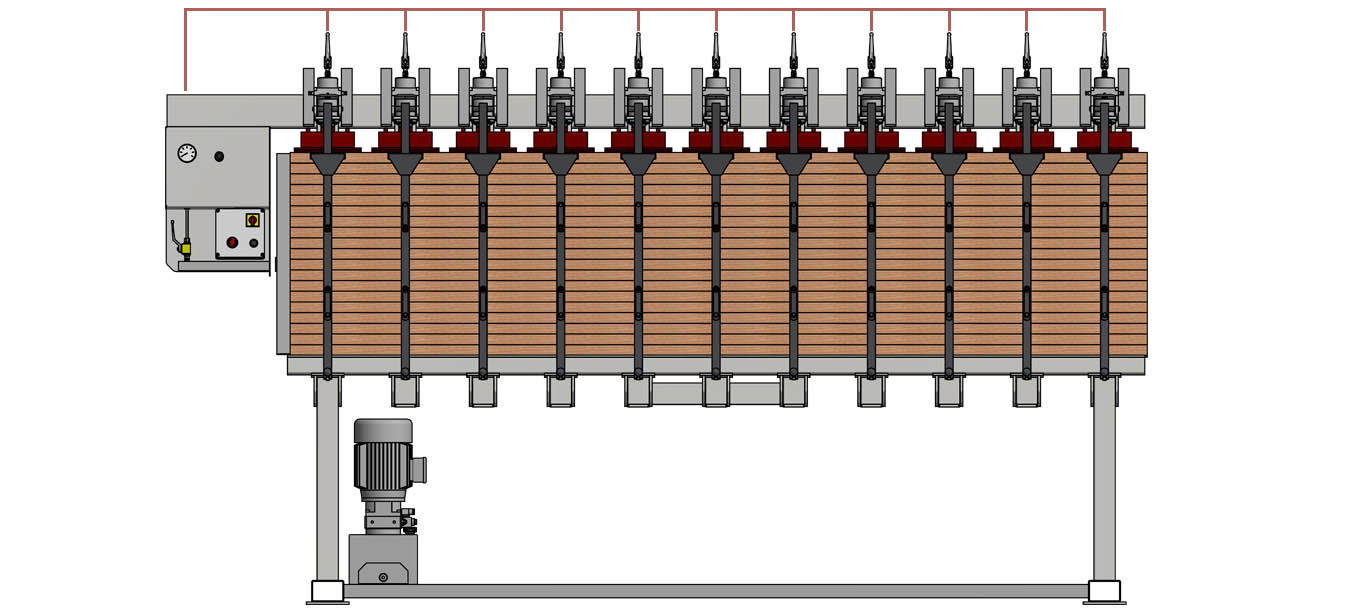

2.1 | 1x CENTRAL + EACH CYLINDER | Each hydraulic cylinder has got its own stop ball valve, so it is possible to OPEN/CLOSE it separately. On the control panel there is CENTRAL stop ball valve for controlling the whole circuit.
